IWA 14-1 Crash Rated Fixed Bollards with 200mm Shallow Mount and Hot-Dip Galvanized Finish

Name: IWA 14-1 Crash Rated Fixed Bollards with 200mm Shallow Mount and Hot-Dip Galvanized Finish
Brand: Beijing Zhuoaoshipeng Technology Co., Ltd.
SKU: HB-SF302
Price: 500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ZASP

Certification: CE ISO

Model Number: HB-SF302

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Packaging Details: carton

Delivery Time: 3-7 working days

Payment Terms: T/T

Supply Ability: 1000

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                    IWA 14-1 Crash Rated Fixed Bollards, 200mm Shallow Mount Security Bollards, Hot-Dip Galvanized Crash Rated Bollards


Product Description

Crash Rated Fixed Bollards | Shallow Mount Options for Sale

Durable Fixed Bollards | Reliable Security Solutions for Outdoor Protection

The Milita HB-SF302-1000 shallow mount fixed bollard represents ZASP's latest security solution, introduced in late 2021. Engineered to anti-terrorist grade standards, this bollard is designed and manufactured according to IWA 14-1 specifications, capable of withstanding impacts from 7200kg trucks traveling at 48kph.

Designed specifically for urban environments with complex underground networks, this fixed bollard features a shallow 200mm mounting depth that makes it suitable for most installation sites where traditional deep foundations are impractical.

Constructed with hot-dip galvanized steel and finished with outdoor powder coating, the bollard offers superior corrosion resistance. Customization options include specified RAL colors or various sleeve finishes to meet specific project requirements.

These crash-rated fixed bollards are ideal for securing sensitive locations including government offices, energy plants, correctional facilities, and other high-security areas requiring robust perimeter protection.

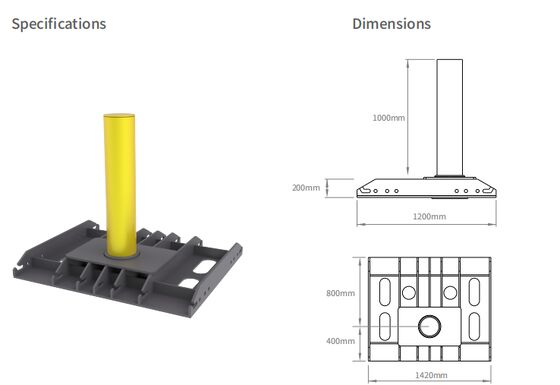

Technical Specifications

Item	Details
Product Dimension	1420mm * 1200mm * 1200mm (L * W * H)
Diameter	Φ219mm ± 2mm
Foundation Dimension	1420mm * 1200mm * 200mm (L * W * H)
Height Above Ground	1000mm ± 3mm
Impact Test	IWA 14-1, 7200kg/48km/h
Material	Q345 Carbon Steel
Surface Treatment	Hot-dip Galvanized and Powder Coated
Color	Yellow, meets customer requirements
