Product Details:
|
| Height: | 1000mm | Width: | 3000mm-5000mm |
|---|---|---|---|
| Material: | A3 Steel | Voltage: | 380V |
| Working Temperature: | -35℃ ~ +55℃ | Top Plate Thickness: | 20mm |
| Security Rating: | IWA14-1;PAS68;7500Kg/80Kph | Weight: | 1.8 Ton-3 Ton |
| Driving Unit: | External | Color: | Black And Yellow, Optional Is Available |
| Port: | Tianjin Port, Beijing Port, Qingdao Port | ||
| Highlight: | High Security Wedge Barrier System,High Security hostile vehicle mitigation barriers,1000mm Height hostile vehicle mitigation barriers |
||

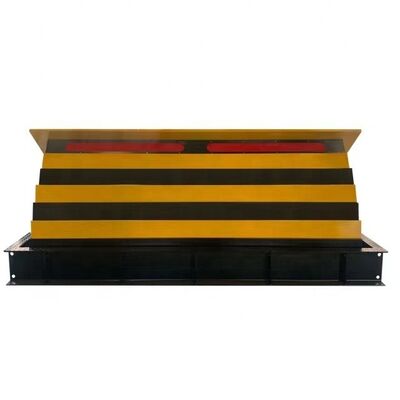

| Product Name | SM501-1000 Road Blocker |
|---|---|
| Road Blocker Dimension | (Intercept width+190mm)L x 1974mmW x 300mmH(Depth) |
| Height From Ground Level | 1000mm |
| Intercept Width | 3m - 4m - 5m |
| Depth | 300mm |
| Top Plate Thickness | 25mm (±2mm) |
| Movement Principle | Hydraulic |
| Rising Time | 3-5s |
| Color | Optional |
| Type of Use | Intensive |
| Finish | Anti-corrosion Treatment |
| E.F.O. Circuit for Emergency Rising | Optional - E.F.O. rising time 1.5s |
| Protection Class | IP 67 |
| Voltage for Control Unit | 380VAC / DC 12V , 50/60HZ |
| Rated Power | 5.5KW (3m-4m-5m) |
| Hydraulic Station Dimension | 1100L x 680W x 1700Hmm |
| Life Units | 10 years |
| Impact Tested | IWA & PAS 7500KG/80KmH, equal M50/K12, Zero penetration |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
ZASP is a professional manufacturer of Hostile Vehicle Mitigation equipment with over 12 years of experience. We were the first to produce Hydraulic Integrated Automatic Bollards in the China market in 2009. We have extensive experience in R&D, production, and installation of road barrier products.
ZASP products are made from carbon steel or stainless steel. Carbon steel can be galvanized or zinc coated for added protection. Stainless steel bollards are quickly becoming the bollard of choice due to their rust resistance and clean, finished look that complements any architectural design.

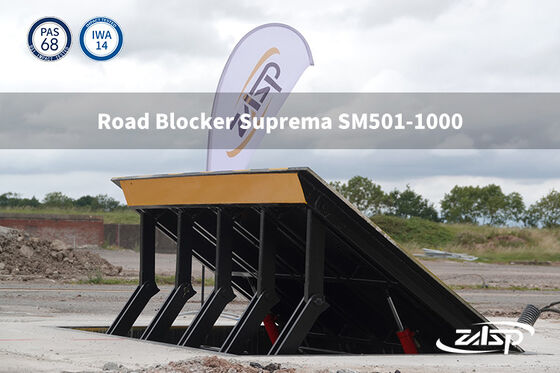

ZASP Hydraulic Automatic Bollards were the first in China to successfully pass impact testing at 6800KGs/80KMH standards in 2011. In 2018, they again passed testing at 6800KGs/80KMH and 1500KGs/100KMH standards, equivalent to ASTM M50 and ASTM C60. Our Hydraulic Automatic Road Blockers also passed impact testing at 6800KGs/65KMH standards in 2018, equivalent to ASTM M40. Please see our impact test pictures and videos on our website.
