Home > Products > Road Blockers > Hydraulic Road Blocker with IWA14-1 Compliance 20MPa Maximum Pressure and External Driving Unit for High Security Applications

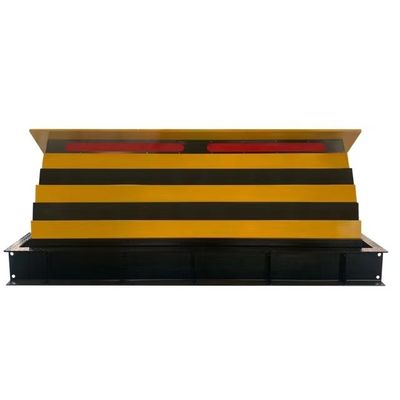

Hydraulic Road Blocker with IWA14-1 Compliance 20MPa Maximum Pressure and External Driving Unit for High Security Applications
Hydraulic Road Blocker with IWA14-1 Compliance 20MPa Maximum Pressure and External Driving Unit for High Security Applications
Hydraulic Road Blocker with IWA14-1 Compliance 20MPa Maximum Pressure and External Driving Unit for High Security Applications
Hydraulic Road Blocker with IWA14-1 Compliance 20MPa Maximum Pressure and External Driving Unit for High Security Applications

Hydraulic Road Blocker with IWA14-1 Compliance 20MPa Maximum Pressure and External Driving Unit for High Security Applications

Product Details

Brand Name: ZASP

Model Number: Suprema RB-SM501 Road Blocker

Payment & Shipping Terms

Get Best Price

Product Details

Product Description
Product Details
Highlight:

IWA14-1 Compliance Road Blocker

,

20MPa Maximum Pressure Hydraulic Road Blocker

,

External Driving Unit Vehicle Barrier

Protection Level:
IP68
Depth:
300mm
Voltage:
220V/380V
Rated Power:
7.5Kw
Products Name:
Hydraulic Power Unit
Communication Interface:
RS485/RS232
Weight:
500-1000kg
Warranty:
1 Year
Protection Level:
IP68
Depth:
300mm
Voltage:
220V/380V
Rated Power:
7.5Kw
Products Name:
Hydraulic Power Unit
Communication Interface:
RS485/RS232
Weight:
500-1000kg
Warranty:
1 Year
Product Description
Hydraulic Power Unit Road Blockers 7.5Kw Rated Power for 500-1000kg Weight Capacity
Product Overview

The PAS 68 Road Blocker is a high-security solution designed to prevent unauthorized vehicle access. Built for durability and reliability, it's ideal for protecting government buildings, military installations, airports, and critical infrastructure sites.

Key Features
  • Compliant with IWA 14-1 and PAS 68 security standards
  • External driving unit for efficient operation
  • 7.5Kw rated power with 220V/380V voltage options
  • Wide operating temperature range (-35°C to 75°C)
  • Can stop 7500kg vehicles traveling at 80kph
  • Hydraulic mechanism for swift deployment
  • 1-year warranty included
Technical Specifications
Parameter Value
Depth 300mm
Size Standard/Customized
Maximum Pressure 20MPa
Protection Level IP68
Voltage 220V/380V
Operating Temperature -35°C to 75°C
Communication Interface RS485/RS232
Intercept Height 1000mm(±10mm)
Applications

The ZASP Suprema RB-SM501 Road Blocker provides high-level security for:

  • Government buildings and military bases
  • Airports and transportation hubs
  • Power plants and critical infrastructure
  • Data centers and commercial complexes
Customization Options
  • Custom branding with ZASP
  • Model customization for specific needs
  • Communication interface options (RS485/RS232)
  • Port options: Tianjin, Beijing, or Qingdao
  • Standard or customized sizes available
Support & Services

Our technical team provides comprehensive support for installation, maintenance, and operation of our road blocker systems, ensuring optimal performance and safety.

Packaging & Shipping

Each road blocker is carefully packaged for protection during transit. Orders are processed within 1-2 business days with shipping times varying by destination.

Frequently Asked Questions
What is the brand and model of this road blocker?
Brand: ZASP. Model: Suprema RB-SM501 Road Blocker.
Where is this product manufactured?
Manufactured in China.
What are the typical dimensions?
Approximately 2m width * 0.7m height * 3m length (custom sizes available).
Is there a warranty included?
Yes, this product comes with a 1-year warranty.
