Hydraulic Drive Shallow Mounted Road Blocker with 220 Tons Load Capacity and IP68 Protection

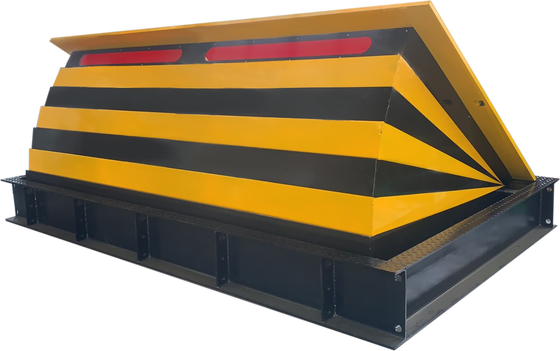

Large Image : Hydraulic Drive Shallow Mounted Road Blocker with 220 Tons Load Capacity and IP68 Protection

Product Details:

Place of Origin:	China
Brand Name:	ZASP
Certification:	CE
Model Number:	Suprema RB-SM501

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Cartoons
Delivery Time:	3-5 Working days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

Hydraulic Drive Shallow Mounted Road Blocker with 220 Tons Load Capacity and IP68 Protection

Description

Highlight:

Hydraulic Drive Road Blocker

220 Tons Load Capacity Blocker

IP68 Protection Road Blocker

Shallow Mounted Rising Wedge Blocker | Efficient Vehicle Access Control

Suprema RB-SM501 High Security Road Blocker

The ZASP Anti-Terrorist High Security Shallow Mounted Road Blocker SM501 delivers superior protection against unauthorized vehicle access, specifically engineered for entrance points with potential vehicle attack threats or locations requiring maximum security.

This Hostile Vehicle Mitigation (HVM) solution provides comprehensive protection against Vehicle Borne Improvised Explosive Device (VBIED) attacks, ensuring site security and personnel safety.

The SM501 shallow mounted design minimizes basement compartment depth requirements and eliminates installation challenges in areas with existing public services. The system can also be installed at ground level using an appropriate slope configuration.

Featuring an electron-hydraulic drive unit with external hydraulic station and controller, the road blocker operates with a typical rise/descent time of 3-5 seconds. Emergency Fast Operation (EFO) capability reduces this to just 2 seconds when equipped with the optional hydraulic accumulator system.

Technical Specifications

Dimension	(Intercept width + 200mm) L * 2000mm W * 300mm H (±10mm)
Intercept Width	2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm
Depth	1000mm
Top Plate Thickness	25mm
HPU Dimension	Without: 1200mm * 800mm * 1700mm; With: 1260mm * 800mm * 1700mm
Movement Principle	Hydraulic
Rising Time	3-5 seconds
Finish	Yellow & Black, RAL color
Load Capacity	Static Loading: 220 Tons, Passing Load: 200 Tons
E.F.O Circuit for Emergency	E.F.O. with a rising time of 2 seconds
Protection Class	IP68
LED Warning Light	Yes
Manual Handling	Yes
Control Voltage	AC 380V ±10% / 50Hz / 60Hz
Power Consumption	5.5kW
Control System	PLC control, linkage work
