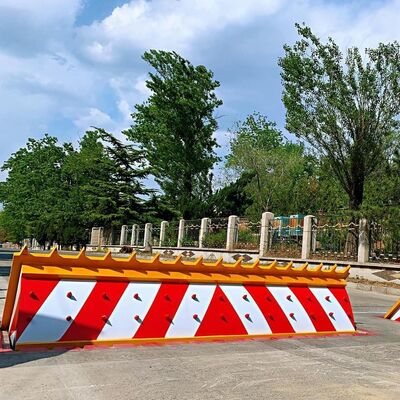

Hydraulic Drive Shallow Mounted Road Blocker with 220 Tons Load Capacity and IP68 Protection

Name: Hydraulic Drive Shallow Mounted Road Blocker with 220 Tons Load Capacity and IP68 Protection
Brand: Beijing Zhuoaoshipeng Technology Co., Ltd.
SKU: Suprema RB-SM501
Price: 500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ZASP

Certification: CE

Model Number: Suprema RB-SM501

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Cartoons

Delivery Time: 3-5 Working days

Payment Terms: T/T

Supply Ability: 1000

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                    220 Tons Load Capacity Road Blocker, IP68 Protection Vehicle Barrier, Shallow Mounted Hydraulic Road Blocker


Product Description

Hydraulic Drive Shallow Mounted Road Blocker | Reliable Vehicle Access Control

Hydraulic Drive Shallow Mounted Road Blocker | 220 Tons Load Capacity & IP68 Protection

The Suprema RB-SM501 High Security Road Blocker delivers superior protection against unauthorized vehicle access, specifically engineered for entrance points with potential vehicle attack threats or locations requiring maximum security.

This Hostile Vehicle Mitigation (HVM) solution provides comprehensive protection against Vehicle Borne Improvised Explosive Device (VBIED) attacks, ensuring site security and personnel safety.

Key Installation Advantages

Shallow mounted design minimizes basement compartment depth requirements
Eliminates installation challenges in areas with existing public services
Can be installed at ground level using appropriate slope configuration

Operational Performance

Electro-hydraulic drive unit with external hydraulic station and controller
Standard rise/descent time: 3-5 seconds
Emergency Fast Operation (EFO) capability reduces to 2 seconds with optional hydraulic accumulator

Technical Specifications

Dimension	(Intercept width + 200mm) L * 2000mm W * 300mm H (±10mm)
Intercept Width	2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm
Depth	1000mm
Top Plate Thickness	25mm
HPU Dimension	Without: 1200mm * 800mm * 1700mm; With: 1260mm * 800mm * 1700mm
Movement Principle	Hydraulic
Rising Time	3-5 seconds
Finish	Yellow & Black, RAL color
Load Capacity	Static Loading: 220 Tons, Passing Load: 200 Tons
E.F.O Circuit for Emergency	E.F.O. with a rising time of 2 seconds
Protection Class	IP68
LED Warning Light	Yes
Manual Handling	Yes
Control Voltage	AC 380V ±10% / 50Hz / 60Hz
Power Consumption	5.5kW
Control System	PLC control, linkage work
