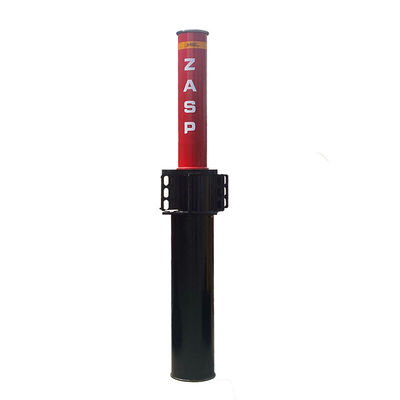

1520mm Depth Fixed Bollards for Access Control System Impact and Crash Resistant Design

Name: 1520mm Depth Fixed Bollards for Access Control System Impact and Crash Resistant Design
Brand: Beijing Zhuoaoshipeng Technology Co., Ltd.
Price: 7.00 USD
Availability: InStock

Product Details

Place of Origin: Beijing, China

Brand Name: ZASP

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: $5,999.00/pieces 10-99 pieces

Packaging Details: Wooden Case

Supply Ability: 10000 Piece/Pieces per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                            ip68 automatic bollards, hydraulic automatic bollards, ip68 hydraulic security bollards


Product Name:	Automatic Hydraulic Rising Bollard	Dimension:	656mmL485mmW1520mmH
Diameter:	219mm±2mm	Depth:	1520mm
Height Above Ground:	1000mm±3mm	Material:	Q345 Carbon Steel
Surface Treatment:	Hot Dippe Galvanized And Power Coated	Movement Principle:	Hydraulic
Protection Class:	IP68	Packing:	Wooden Case
Port:	Tianjin Port

Product Name:	Automatic Hydraulic Rising Bollard
Dimension:	656mmL485mmW1520mmH
Diameter:	219mm±2mm
Depth:	1520mm
Height Above Ground:	1000mm±3mm
Material:	Q345 Carbon Steel
Surface Treatment:	Hot Dippe Galvanized And Power Coated
Movement Principle:	Hydraulic
Protection Class:	IP68
Packing:	Wooden Case
Port:	Tianjin Port

Product Description

Specification

Product Name	Milita HB-HA301 Hydraulic Automatic Bollard
Product Dimension	656mmL485mmW1520mmH
Diameter	291mm±2mm
Depth	1520mm
Height Above Ground	1000mm±3mm
Anti Crash Grade	Anti Crash Grade
Bollard Material	Q345 Carbon Steel
Surface Treatment	Hot-dip Galvanized and Power Coated
Movement Principle	Hydraulic driving
Cylinder Finish	ADG Anit-corrosion Treatment with RAL color
Supply Voltage	AC 380V＋10% 50Hz/60Hz
Protection Class	IP68
Operating Temperature	-40℃~＋70℃
Manual Emergency Lowering	Build-in into the bollard, EFO with extemal HPU
Hydraulic Unit	3.000.000 CYCLES

IWA 14-1 & PAS 68

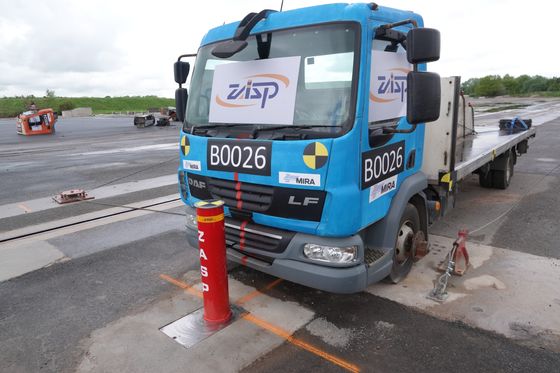

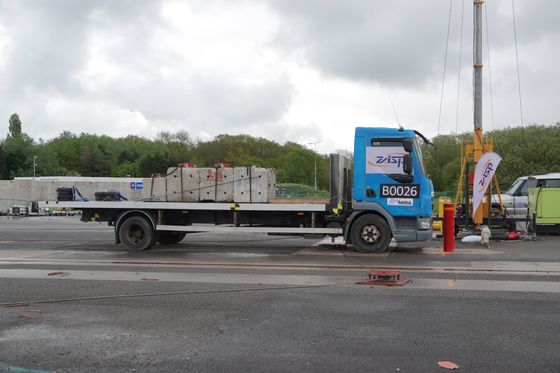

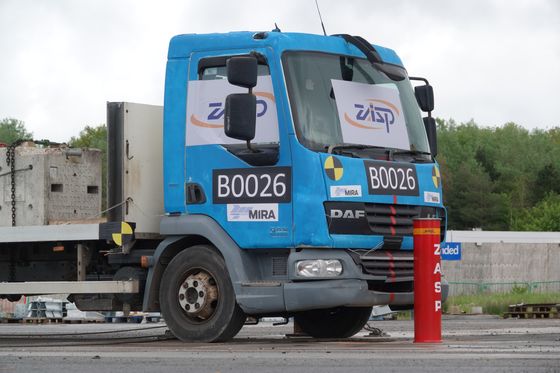

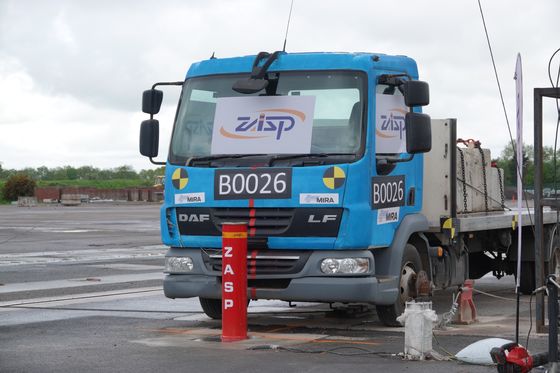

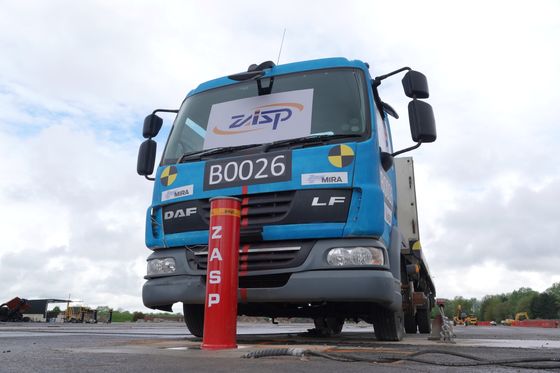

Milita HB-HA301Hydraulic Automatic Bollard passed IWA 14-1 & PAS 68 impact test by 7500Kg/48Kmh, P1, ZERO penetration.

SINGLE Bollard Test

This model type is installed in single unit or multiple units with an external power unit or internal hydraulic station (2 options) with PLC system, connected via the hydraulic hoses.

The performance of after crashed

After crashed the structural integrity remains intactstill and working stable.

Company Profile

Beijing ZhuoAoShiPeng Technology Co., Ltd. was established in 2009, which is professional manufacturer of Hostile Vehicle Mitigation security barrier, the R&D and the operation office is situated in Fengtai District of Beijing. And the manufacturing base is located in Renqiu City, Hebei Province, the fabrication space now comprises of more than 120,000 square feet of production area. ZASP provide high security level products of Hydraulic Automatic Bollards, Fixed Bollards, Road Blockers and Rising Beam Gate, also supply Semi-Automatic Bollards, Bollards, Manual Retractable bollards, Tyre Killers and Portable MVB for different security level selected. Our key products passed impact tests in China by GA/T 1343-2016 standard, also the only Chinese supplier passed the ASTM F2656, IWA 14-1:2013 and BSI PAS 68:2013 standard impact test in UK by MIRA. ZASP products are widely used in many locations across the Globe, such as Embassies, Airports, School locations, Government locations, Stadiums, Rail Stations, Banks, Energy Plants locations, Commercial sites, Private Residences and more.
