Hydraulic Security Bollards | Anti-Ram HVM Bollards - ZASP
Hydraulic Security Bollards | Anti-Ram HVM Bollards - ZASP

Hydraulic Security Bollards | Anti-Ram HVM Bollards - ZASP

Product Details

Place of Origin: China

Brand Name: ZASP

Certification: CE ISO IWA14-1 PAS68

Model Number: Suprema HB-HA (SA)520

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Cartoon Package

Delivery Time: 5 working days

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 1000 pcs/day

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Hydraulic security bollards with warranty

,

Anti-ram HVM bollards automatic

,

Automatic bollards hydraulic security

Product Description
Hydraulic Security Bollards | Anti-Ram HVM Bollards - ZASP
K12 Automatic Rising Bollards | Hydraulic Retractable Bollards
The Suprema HB-HA(SA)520 Automatic/Semi-Automatic Bollard represents the latest in high-security perimeter protection technology, designed to deliver maximum stopping power with enhanced operational efficiency.

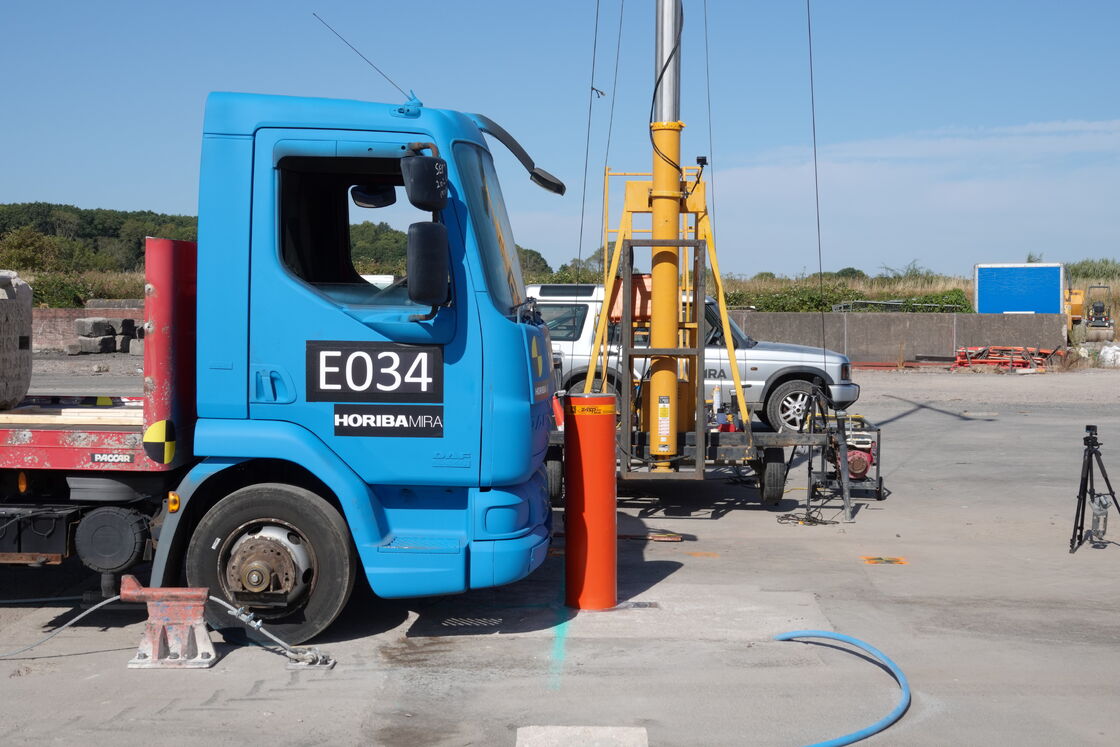

Certified Performance: ISO 22343-1:2023 compliant | Impact tested by 7200kg truck traveling at 80kph
K12 Suprema automatic rising bollard installation showing professional security barrier implementation
Advanced Drive System Technology
The upgraded K12 M50 Suprema HB-HA(SA)520 features a fully optimized drive system available in both hydraulic-integrated and electric configurations. The hydraulic split version can be optionally equipped with EFO for greater application flexibility, while the electric drive offers enhanced eco-friendly operation. Despite significant weight reduction, this bollard maintains exceptional crash test performance as a single unit, effectively stopping 7,200kg trucks traveling at 80km/h. The lighter construction facilitates easier installation and transportation while improving overall cost effectiveness.
K12 Suprema bollard technical specifications and dimensional drawings
Technical Specifications
Parameter Specification
Diameter 273mm±2mm
Dimensions (L x W x H) 664mm x 550mm x 2710mm
Thickness 18mm±2mm
Intercept Height 1100mm+2mm
Material Q345 carbon steel / 304 stainless steel
Surface Treatment Powder Coating / Polishing
Voltage AC 220V+10% <1200W 50Hz+5%/60Hz+5%
Capacity Static load: 100T; Throughput load: 200T
