Hydraulic Automatic Rising Bollards HB-HA301 Anti-Ram Security for Driveways

Name: Hydraulic Automatic Rising Bollards HB-HA301 Anti-Ram Security for Driveways
Brand: Beijing Zhuoaoshipeng Technology Co., Ltd.
SKU: Suprema HB-HA (SA)520
Price: 500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ZASP

Certification: CE ISO IWA14-1 PAS68

Model Number: Suprema HB-HA (SA)520

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Cartoon Package

Delivery Time: 5 working days

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 1000 pcs/day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                    Hydraulic automatic rising bollards, Anti-ram security bollards for driveways, Automatic bollards with hydraulic system


Product Description

Hydraulic Automatic Rising Bollards HB-HA301 Anti-Ram Security for Driveways

K12 Automatic Rising Bollards | Hydraulic Retractable Bollards - ZASP

Product Overview

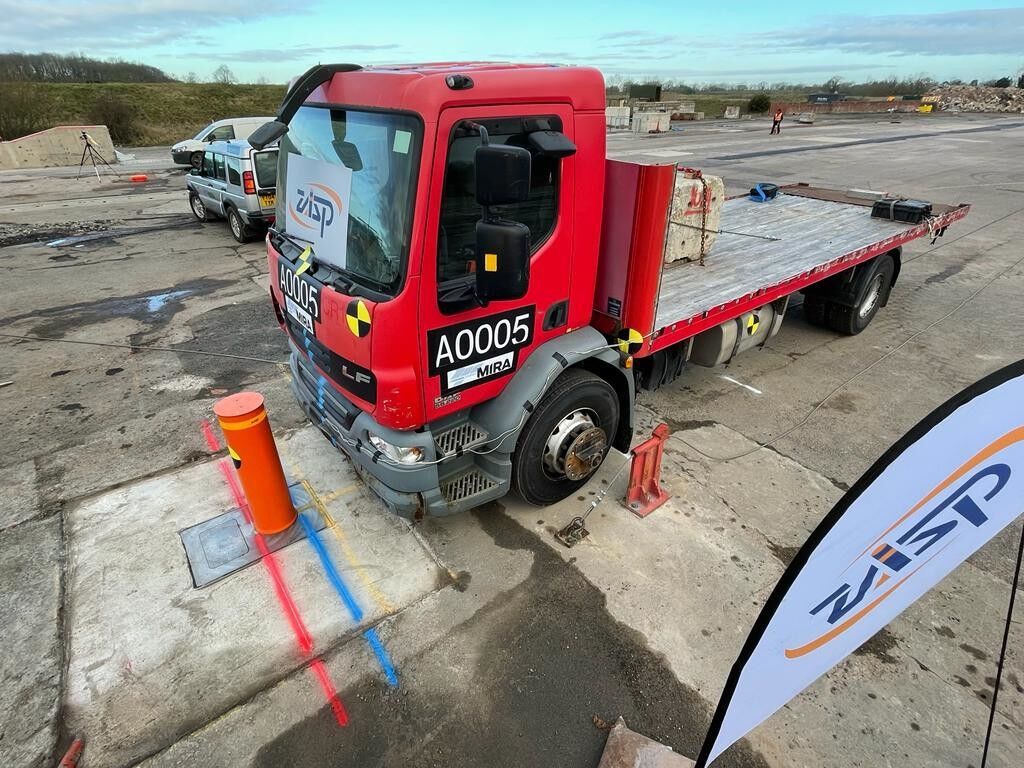

Suprema HB-HA(SA)520 Automatic/Semi-Automatic Bollard featuring ISO 22343-1:2023 certification. Impact tested to stop 7200kg trucks traveling at 80kph. Automated rise/fall with vehicle detection, hydraulic drive for smooth and quiet operation, and integration with card readers and boom barriers for comprehensive driveway and parking access control. PAS 68 / IWA 14-1 tested series.

The upgraded K12 M50 Suprema HB-HA(SA)520 Automatic/Semi-Automatic Bollard features a fully optimized drive system available in hydraulic-integrated and electric configurations. The hydraulic split version can be equipped with EFO for greater flexibility across applications, while the electric drive offers eco-friendly operation. Despite significant weight reduction, the bollard passed ISO 22343-1:2023 crash testing as a single unit, effectively stopping 7,200kg trucks at 80km/h. The lighter construction facilitates easier installation and transport while enhancing cost effectiveness.

Technical Specifications

Diameter	273mm±2mm
Dimensions	664mm x 550mm x 2710mm (L x W x H)
Thickness	18mm±2mm
Intercept Height	1100mm+2mm
Material	Q345 carbon steel / 304 stainless steel
Surface Treatment	Powder Coating / Polishing
Voltage	AC 220V+10% <1200W 50Hz+5%/60Hz+5%
Capacity	Static load: 100T; Throughput load: 200T

Application Overview

This bollard belongs to ZASP's hydraulic automatic bollard line, designed for sites requiring continuous, automated vehicle filtering. Operating flush with the road surface, it maintains open entrances for foot traffic and clear sightlines while physically blocking unauthorized vehicles - a capability that fixed barriers and manual posts cannot provide.

Typical Applications

Residential and commercial driveways: Prevents unauthorized parking and tailgating at compound gates
Parking entrances: Integrates with ticket or license plate recognition systems for automatic vehicle admission
Pedestrian zones and campus roads: Allows scheduled delivery windows while remaining secured throughout the day
Government and corporate perimeters: Forms inner access-control lines behind crash-rated barriers

Working Principle

When an authorized vehicle approaches, the loop detector or card reader sends a signal to the PLC cabinet. The hydraulic power unit then drives the bollard below road level in a smooth, controlled motion. After vehicle passage, the bollard rises automatically and locks into position. During emergencies or power failures, the unit can be configured for priority raising to immediately secure the entrance.

Control and Integration

The standard control package includes a PLC cabinet, loop detector, and remote control. Additional integration options include card readers, license plate recognition systems, and linkage with boom barriers or road blockers, enabling the bollard to function as part of a comprehensive entrance management system rather than a standalone post.

Quality and Certification

HB-HA301 is manufactured under the same quality system as ZASP's crash-rated product lines. The ZASP bollard series is tested to PAS 68 and IWA 14-1 standards, with ISO 22343 certification available for tender documentation requirements.

Service and Support

ZASP provides foundation drawings, installation guidance, and commissioning support for every order. Long-term supply of wear parts and hydraulic components is available, along with OEM customization options for diameter, height, and surface finish specifications.
