ZASP hydraulic automatic bollards provide robust security solutions for driveways, parking facilities, and perimeter protection. Our K4, K12, and M30 models feature ISO 22343-1:2023 certification and PAS 68/IWA 14-1 testing standards.
Product Overview

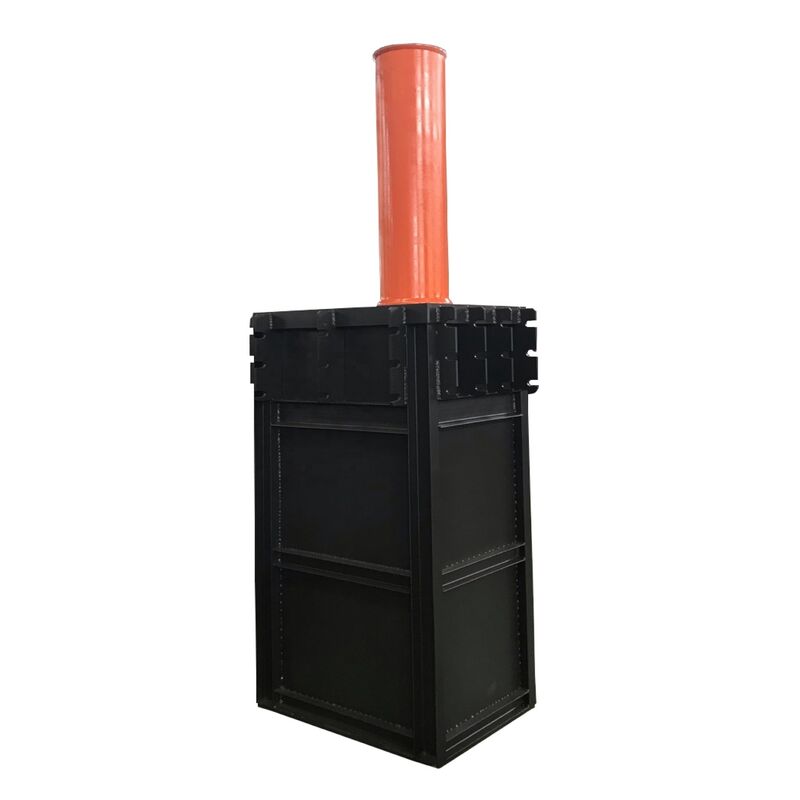

Suprema HB-HA(SA)520 Automatic/Semi-Automatic Bollard with ISO 22343-1:2023 certification. Impact tested to stop 7200kg trucks at 80kph. Features automated rise/fall with vehicle detection, hydraulic drive for smooth operation, and integration with card readers and boom barriers for comprehensive access control.
The upgraded K12 M50 Suprema HB-HA(SA)520 features a fully optimized drive system available in hydraulic-integrated and electric configurations. The hydraulic split version can be equipped with EFO for greater flexibility, while the electric drive offers eco-friendly operation. Despite significant weight reduction, the bollard passed ISO 22343-1:2023 crash testing as a single unit, effectively stopping 7,200kg trucks at 80km/h.
Technical Specifications
| Parameter | Specification |
|---|
| Diameter | 273mm±2mm |
| Dimensions | 664mm x 550mm x 2710mm (L x W x H) |
| Thickness | 18mm±2mm |
| Intercept Height | 1100mm+2mm |
| Material | Q345 carbon steel / 304 stainless steel |
| Surface Treatment | Powder Coating / Polishing |
| Voltage | AC 220V+10% <1200W 50Hz+5%/60Hz+5% |
| Capacity | Static load: 100T; Throughput load: 200T |
Application Overview
ZASP hydraulic automatic bollards are designed for sites requiring continuous, automated vehicle filtering. Operating flush with the road surface, they maintain open entrances for foot traffic while physically blocking unauthorized vehicles.
Typical Applications
- Residential and commercial driveways: Prevents unauthorized parking and tailgating at compound gates
- Parking entrances: Integrates with ticket or license plate recognition systems for automatic vehicle admission
- Pedestrian zones and campus roads: Allows scheduled delivery windows while remaining secured throughout the day
- Government and corporate perimeters: Forms inner access-control lines behind crash-rated barriers
Working Principle
When an authorized vehicle approaches, the loop detector or card reader sends a signal to the PLC cabinet. The hydraulic power unit then drives the bollard below road level in a smooth, controlled motion. After vehicle passage, the bollard rises automatically and locks into position. During emergencies or power failures, the unit can be configured for priority raising to immediately secure the entrance.
Control and Integration
Standard control package includes PLC cabinet, loop detector, and remote control. Additional integration options include card readers, license plate recognition systems, and linkage with boom barriers or road blockers, enabling the bollard to function as part of a comprehensive entrance management system.
Quality and Certification
HB-HA301 is manufactured under the same quality system as ZASP's crash-rated product lines. The ZASP bollard series is tested to PAS 68 and IWA 14-1 standards, with ISO 22343 certification available for tender documentation requirements.
Service and Support
ZASP provides foundation drawings, installation guidance, and commissioning support for every order. Long-term supply of wear parts and hydraulic components is available, along with OEM customization options for diameter, height, and surface finish specifications.
