Heavy Duty Bollards K12/M50 HVM Rated | ZASP OEM

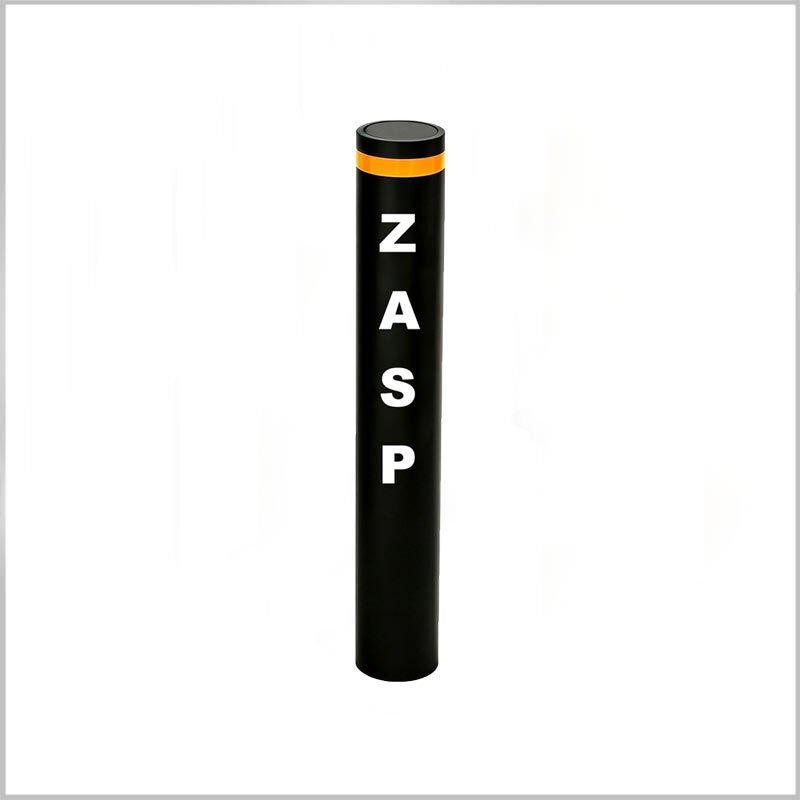

ZASP hydraulic automatic bollards deliver robust security for driveways, parking facilities, and perimeter protection. The K4, K12, and M30 models carry ISO 22343-1:2023 certification and are tested to PAS 68 and IWA 14-1 standards, making them suitable for high-security vehicle access control.

The Suprema HB-HA(SA)520 is an ISO 22343-1:2023 certified automatic and semi-automatic bollard, impact tested to stop 7,200 kg trucks at 80 km/h. It features automated rise and fall with vehicle detection, a hydraulic drive for smooth operation, and integration with card readers and boom barriers for comprehensive access control.

The upgraded K12 M50 Suprema HB-HA(SA)520 features a fully optimized drive system available in hydraulic-integrated and electric configurations. The hydraulic split version can be equipped with EFO for greater flexibility, while the electric drive offers eco-friendly operation. Despite significant weight reduction, the bollard passed ISO 22343-1:2023 crash testing as a single unit, effectively stopping 7,200 kg trucks at 80 km/h.

ZASP hydraulic automatic bollards are designed for sites requiring continuous, automated vehicle filtering. Operating flush with the road surface, they maintain open entrances for foot traffic while physically blocking unauthorized vehicles.

• Residential and commercial driveways: Prevents unauthorized parking and tailgating at compound gates.
• Parking entrances: Integrates with ticket or license plate recognition systems for automatic vehicle admission.
• Pedestrian zones and campus roads: Allows scheduled delivery windows while remaining secured throughout the day.
• Government and corporate perimeters: Forms inner access-control lines behind crash-rated barriers.

When an authorized vehicle approaches, the loop detector or card reader sends a signal to the PLC cabinet. The hydraulic power unit then drives the bollard below road level in a smooth, controlled motion. After vehicle passage, the bollard rises automatically and locks into position. During emergencies or power failures, the unit can be configured for priority raising to immediately secure the entrance.

The standard control package includes a PLC cabinet, loop detector, and remote control. Additional integration options include card readers, license plate recognition systems, and linkage with boom barriers or road blockers, enabling the bollard to function as part of a comprehensive entrance management system.

The HB-HA301 is manufactured under the same quality system as ZASP's crash-rated product lines. The ZASP bollard series is tested to PAS 68 and IWA 14-1 standards, with ISO 22343 certification available for tender documentation requirements.

ZASP provides foundation drawings, installation guidance, and commissioning support for every order. Long-term supply of wear parts and hydraulic components is available, along with OEM customization options for diameter, height, and surface finish specifications.
